RUI’AN / NEW ENERGYNew energy

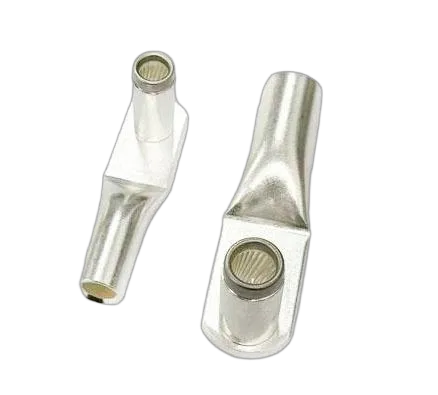

New energy connector sockets
Female connector contacts for mating with power pins. Discuss the mating dimensions, contact design and assembly requirements with our team to select or customize the appropriate socket.
Discuss this productMade to agreed specifications. Quote based on your requirements.
At a glance
- Catalog examples
- 3 mm / 6 mm spring sockets; 6 / 3 mm energy storage sockets
- Component type
- Female connector contact
- Mating interface
- Matched to the selected pin and housing
- Current & temperature
- Subject to application validation
APPLICATIONS
Designed into your assembly.
- Energy storage
- Charging equipment
- Battery connections
START A QUOTATION
Tell us what your part needs.
Share a dimensioned drawing, material, finish, required quantity and any critical features. For connector contacts, include the mating interface and electrical requirements.
Samples typically take 7–10 days and production 10–15 days, subject to the final specification and order.
EXPLORE THE RANGE
Configurations & dimensions.

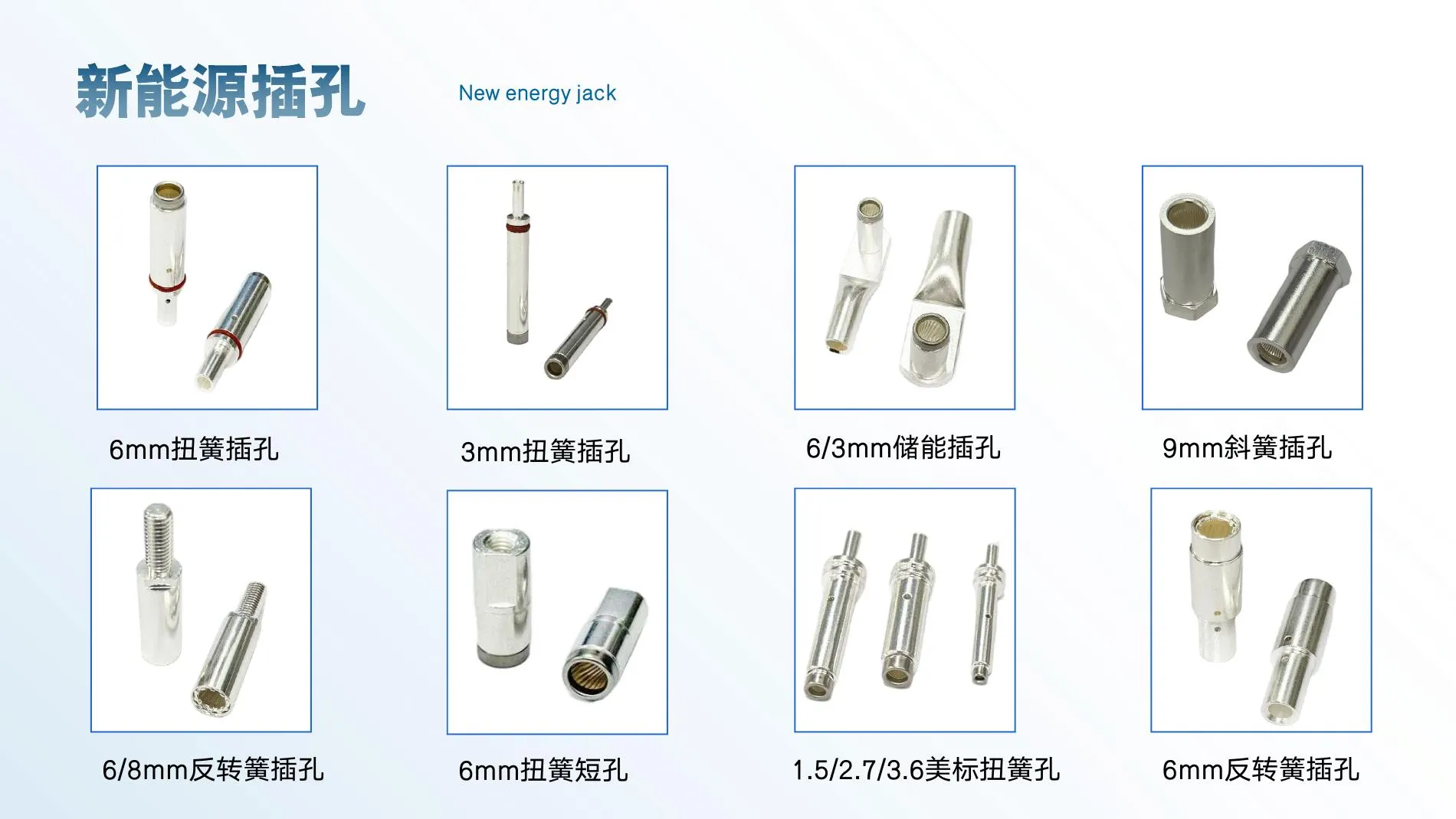

Original catalog images show the available configurations. Select a page to enlarge the product details.
Dimensions are shown in millimeters where indicated. These are catalog references; confirm the final drawing and specification with our team.
