RUI’AN / PRECISION PINS & SHAPED CONTACTSPrecision pins & shaped contacts
Series overview

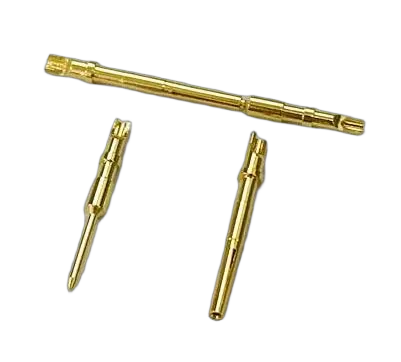

Pin & socket contacts
Our pin and socket range includes solder, board-mount, slotted and shaped configurations. Send your drawing and mounting requirements for help selecting or customizing a contact.
Request a quotationInclude your drawing and quantity for a product-specific quotation.
Product details
- Configurations
- Male pins and female sockets
- Contact options
- Slotted, solder, board-mount and threaded contacts
- Geometry
- Illustrated configurations and custom shapes
- Material & finish
- Confirmed for the selected part
APPLICATIONS
Applications
- Electronic assemblies
- PCB connections
- Custom connector designs
START A QUOTATION
Request a custom part.
Share a dimensioned drawing, material, finish, required quantity and any critical features. For connector contacts, include the mating interface and electrical requirements.
Samples typically take 7–10 days and production 10–15 days, subject to the final specification and order.
EXPLORE THE RANGE
Configurations & dimensions.
Compare the configurations below, then send your selected part and requirements for a quotation. Select a product image to enlarge it.

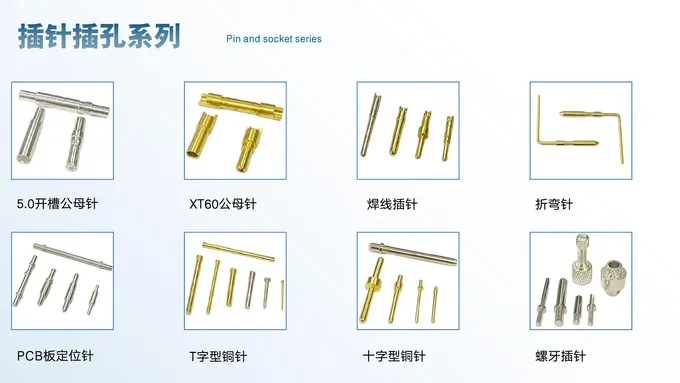

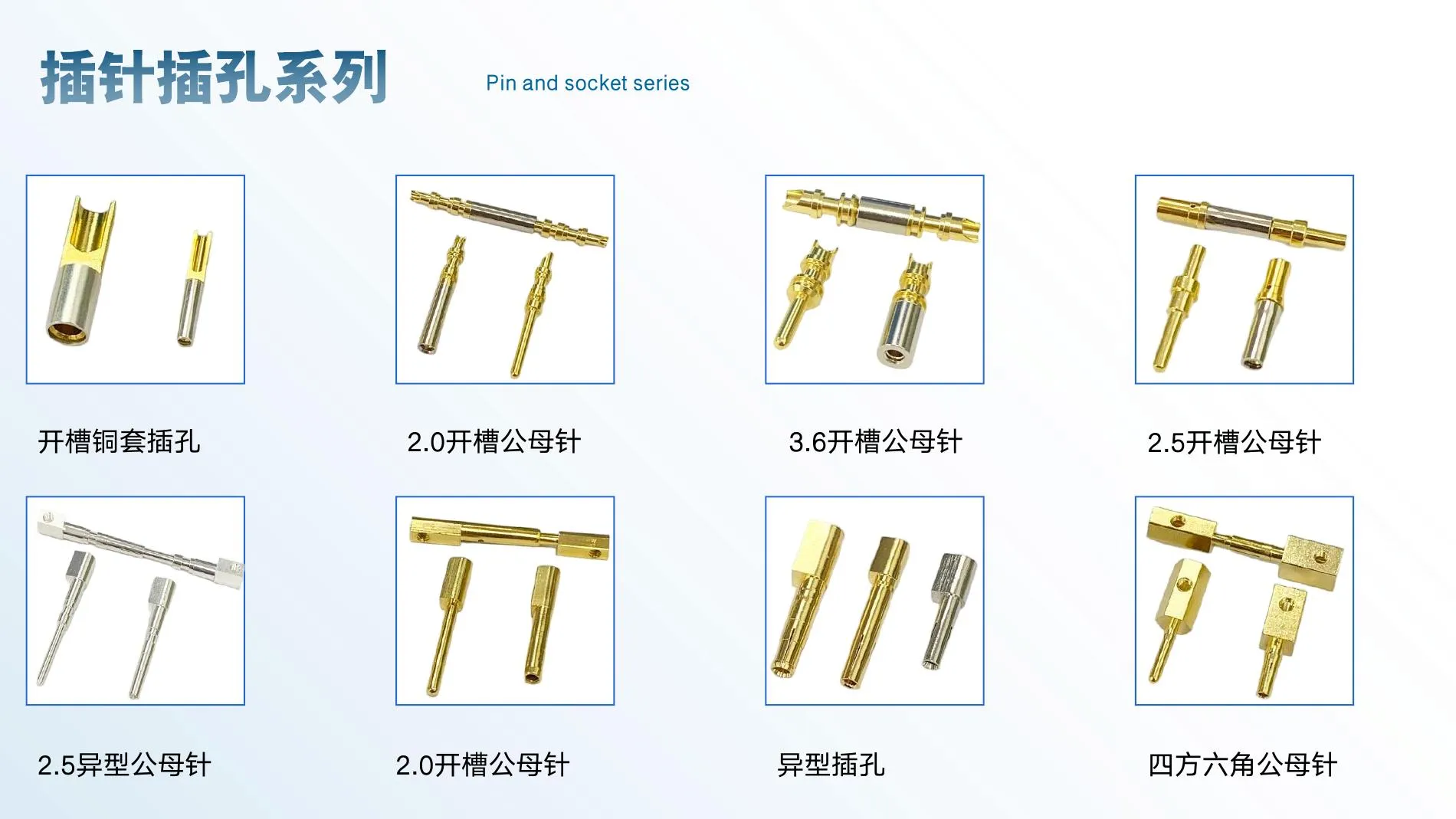

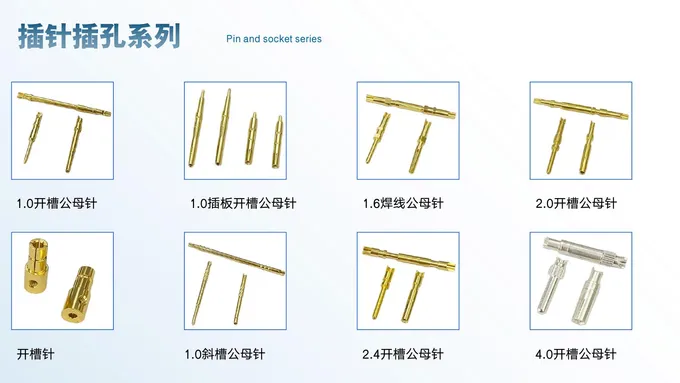

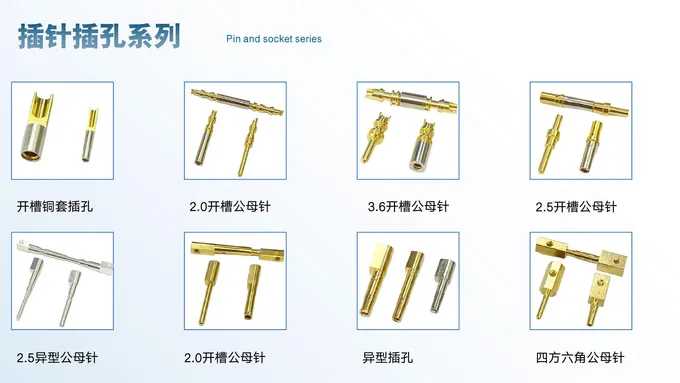

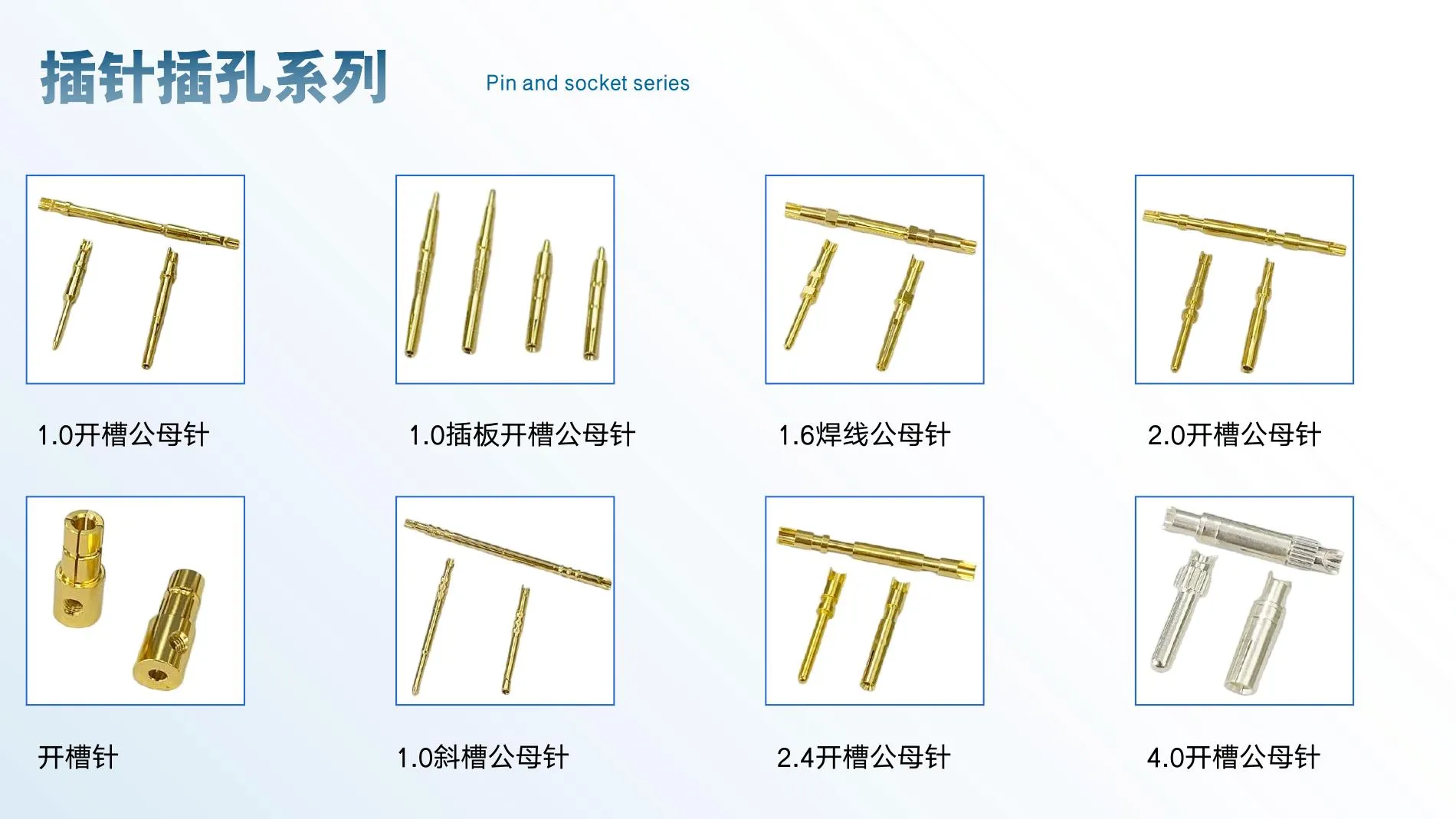

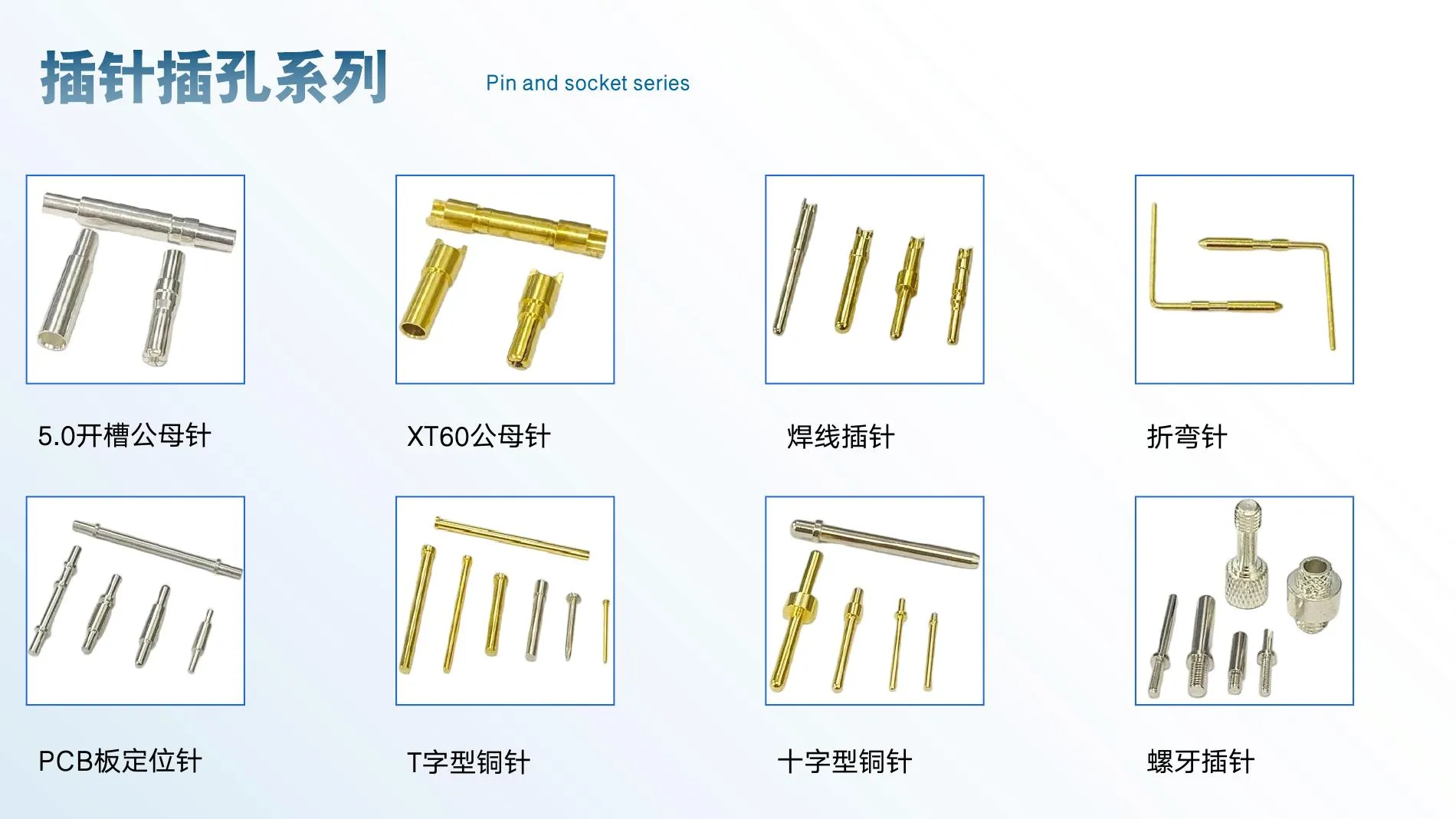

View original dimension sheets & reference pages
Original reference documents retain their source language.
Check the units shown on each drawing. Our team will confirm the dimensions, material and finish for your selected part before production.
Open the full catalog (original PDF, 12 MB) ↗Explore more products.
